GIGA-TMS INC Catalogue

Product Name

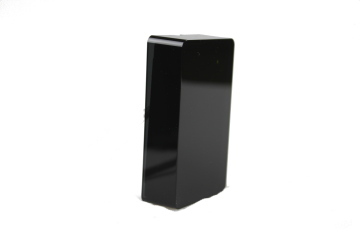

High Frequency Multi Technology Reader

Model No.
MP310/MP315

Download
Catalog     Picture

Introduction
MP310/315 are stylish and multiple proximity UID readers with piano finish housing that seamlessly integrates into an intelligent building to support various types of 13.56MHz RFID cards.  It aims to offer a simple yet powerful solution for customers reducing inventory overheads and also ties clients from other device providers.

Features
- Enhanced anti-collision algorithm for multi-card handling
- Supported output interface: Wiegand and RS232
- Supported baud rate: 9600 bps
  ( 2400 bps to 11522 bps is available on request)
- Supported NFC 1 - 4 tag
- Supported card types:
  * ISO14443A
  * ISO14443B SRI4K, SRI512
  * ISO15693  SIC5600, ICODE-SLI, ICODE-SLI-L, ICODE-SLI-S


Specifications
Frequency:   13.56MHz

Power
Requirement: 5-12 Volts regulated DC a5 130mA typical with 12VDC
***A linear regulator is recommended****
Output
Interface:   Wiegand, RS232

Audio
indication:  Internal LED and Buzzer

Dimension:   83 x 47 x 16 mm
Operating

Temperature: -10 degree to 60 degree C

Card type:   ISO14443A/B, ISO15693, INSIDE Pico Tag



Note: The Specification is subject to change without notice.

Application
- Access control
- Time attendance
- Data collection
- Vehicles identification
- Logistics tracking

Available versions
MP310
MP315
