Introduction

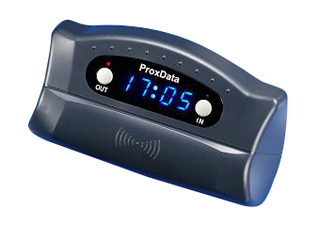

TR515A Ethernet-interfaced Time Recorder is simple to install and operate , this Time and Attendance terminal provides all the basic Time Recorder functionality in a solid and cost-effective package.
Extremely versatile , TR515A terminal can be used as either a wall-mount or as a desktop device . An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.
Features
* Ethernet interface connected to Ethernet hub
* Works on a standard TCP/IP network
* Bright , high-contrast blue LED display shows time of day , last 4 digits of the ID-code and error messages
* Approximately 8200 records storage capacity
* Convenient Machine Number setup feature using IN and OUT buttons simplifies multi-terminal installation
* Built-in Ring relay for external ring ( bell ) control
* Daily bell schedule of up to 32 different entries
* Built-in RFID or Mifare reader 13.56Mhz or Barcode reader
* Two buttons for clocking IN and OUT
Specifications
a. Display : 4 x 7-segment Blue light LED.
b. Barcode reader : Visible or IR , numerical Code 39
c. RFID reader : 125 KHz , ASK , 64 bits, Manchester coding or
MIFARE reader 13.56Mhz
d. Database capacity : App. 8200 records
e. Supported interface : Ethernet , TCP/IP protocol
f. Bell control relay : 1A , 12 V max.
g. Power supply : DC 9 V , 500 mA
h. Dimensions : W185 x H110 x D51 mm
i. Installation : Wall-mount or desktop
j. Operating temperature : 0 ~ 55 Deg. C
k. Operating humidity : 5 ~ 95 % relative
Application
- Time attendance
- Employees IN/OUT control
Available versions
TR515AR-00 - with 125KHz and 13.56MHz MIFARE RFID card reader
TR515AR-20 - with 125KHz and 13.56MHz MIFARE card with POE
Remark
RS-232/485 interface model is available on request.
Application Example
Extremely versatile , TR515A terminal can be used as either a wall-mount or as a desktop device . An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.
* Works on a standard TCP/IP network
* Bright , high-contrast blue LED display shows time of day , last 4 digits of the ID-code and error messages
* Approximately 8200 records storage capacity
* Convenient Machine Number setup feature using IN and OUT buttons simplifies multi-terminal installation
* Built-in Ring relay for external ring ( bell ) control
* Daily bell schedule of up to 32 different entries
* Built-in RFID or Mifare reader 13.56Mhz or Barcode reader
* Two buttons for clocking IN and OUT
b. Barcode reader : Visible or IR , numerical Code 39
c. RFID reader : 125 KHz , ASK , 64 bits, Manchester coding or
MIFARE reader 13.56Mhz
d. Database capacity : App. 8200 records
e. Supported interface : Ethernet , TCP/IP protocol
f. Bell control relay : 1A , 12 V max.
g. Power supply : DC 9 V , 500 mA
h. Dimensions : W185 x H110 x D51 mm
i. Installation : Wall-mount or desktop
j. Operating temperature : 0 ~ 55 Deg. C
k. Operating humidity : 5 ~ 95 % relative
Note: The Specification is subject to change without notice.
