Product Name
RFID Reader Module with 90mm MSR Housing Compatible

Model No.
RF222 / MF222

Download
Catalog     Picture


Introduction

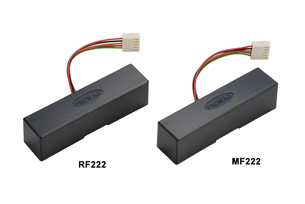

RF222 / MF222
is designed for Magnetic Stripe Reader to use RFID technology substitute solution.The advantage of contactless reading and compatible MSR module housing, use PROMAG RFID technology at 125Khz or 13.56Mhz is your best system upgradeable scenario. PROMAG RFID reader module RF222 / MF222 is the best choice to upgrade specification from Magnetic stripe module to RFID reader module, it is very simple to install RFID reader module just change RF222 or MF222 RFID module to original interface of MSR module without any additional hardware or enclosure tooling change.



Features
* Contactless reading
* MSR interface
* 90mm MSR housing compatible
* Small and compact design
* Easy to install




Specifications
RF222
Power requirement: 5VDC +- 5%  at 55mA typical
Frequency: 125KHz
Read Range: 80mm with ISO card *1
Interface: MSR ABA track2; Wiegand 26bit; Serial TTL 9600bps,8N1
Wire length: 100 mm
Transponder: Read only
Card type : EM compatible
Safety certificate: CE / FCC
Dimension: 90 (L) x 22.5(W) x 24(H) mm
Operating temperature:-10 to 60 Deg C
Operating relative humidity: 10 ~ 90%.


MF222
Power requirement: 5VDC +- 5%  at 55mA typical
Frequency: 13.56Mhz
Read Range:20~50mm *1
Interface: MSR ABA track2; Wiegand 26bit; Serial TTL 9600bps,8N1
Wire length: 100 mm
Transponder: Read only for unique serial number &  identifier
Card type: ISO 14443A Mifare® MF1 / Ultralight
Safety certificate: CE / FCC
Dimension: 90 (L) x 22.5(W) x 24(H) mm
Operating temperature:-10 to 60 Deg C
Operating relative humidity: 10 ~ 90%.


*1 Typical maximum read in ideal conditions
Note: The Specification is subject to change without notice.



Application



Available versions
RF222A---- 125KHz / MSR ABA Tack2 interface
RF222W---- 125KHz/ Wiegand interface
RF222S---- 125KHz/ Serial TTL interface
MF222A---- 13.56Mhz / MSR ABA Track2 interface
MF222W---- 13.56Mhz / Wiegand interface
MF222S---- 13.56Mhz / Serial TTL interface



Remark



Application Example
