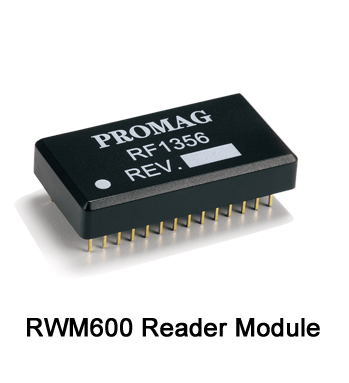

Product Name
Smart Label \Smart Labels Reader Module

Model No.
RWM600A

Download
Catalog     Picture


Introduction

RWM600A is an ISO15693 read/write module which works with smart labels, the read/write module has a read/write feature, depends on the size of antenna, the optimum read distance can be up to 200mm.  RWM600A reads ISO15693 compatible transponders with an operating frequency of 13.56Mhz (e.g. I-CODE SLI,Tag-It HF-I ...etc.), and it is a small size module with DIP28 pin package. RWM600A is the best choice for system integrator to install into other devices, such as printers, terminals and handheld devices.



Features
* ISO/IEC 15693 compatible
* Small Reader module (DIP28)
* Support all ISO/IEC 15693 compliant smart labels
* Operate time <24ms per one label
* Reading distance up to 200mm (0.2W) with an ideal design antenna conditions
* 10 Programmable I/O, IRQ, D/O for OEM
* In-System Programmable firmware for OEM



Specifications
Power Requirements: 5 VDC Stand by:70mA, Transmit:<80mA,  A linear regulator is recommended
Interface: RS232, UART, TTL:19200,n,8,1 and RS485
Support smart label types: ISO15693 compatible transponders
Maximum reading distance: Up to 200 mm with an ideal antenna conditions     (0.2 Watt output)
Frequency: 13.56 MHz standard
RF Modulation/Subcarrier: 100% FM
RF Protocol: ISO/IEC15693
Operate time: <24ms per one label
Dimensions: 39 (L) x 21 (W) x 11.6(D) mm
Environment:
Operating temperature -10 ~ + 60 Deg C
Operating relative humidity 10~90%



Note: The Specification is subject to change without notice.



Application
1.Supply Chain
2.Retail system inventory
3.Logistics system
4.Express Parcel Management
5.Product Authentication
6.Access control / Time recorder
7.Ticketing
8.Smart label printer and encoder

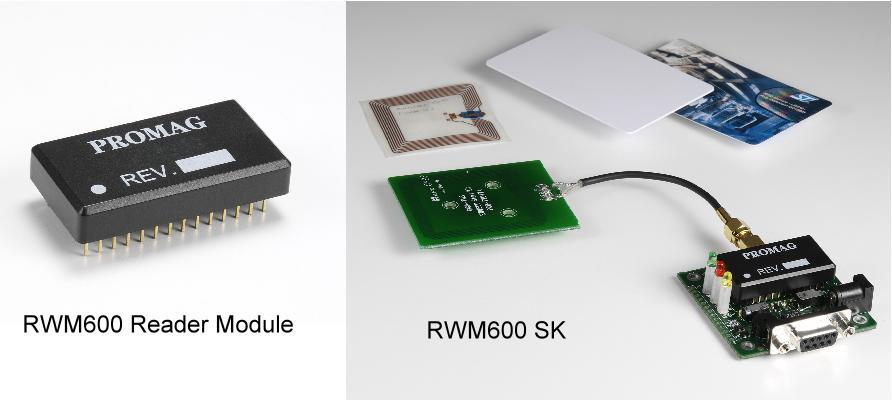

Available versions
RWM600A: RWM600A Reader module
RWM600ASK: Smart Development Kit included RWM600A + RS232 cable + SDK CD + Tag-It HF-I x 3 pcs



Remark



Application Example
