Product Name

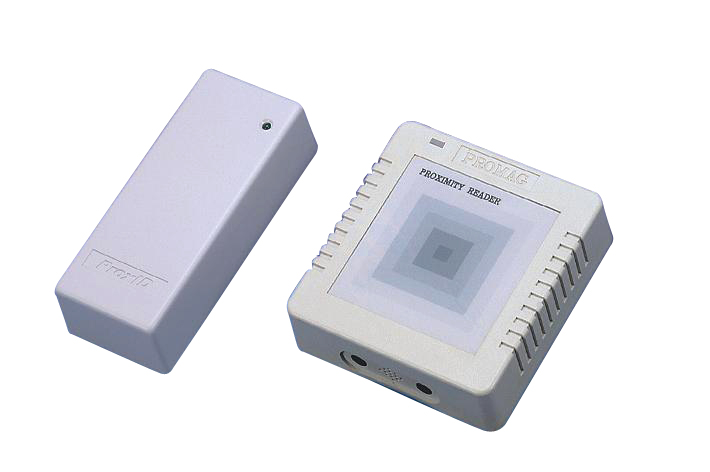

RFID Proximity Readers with ABA TK2 Emulation

Model No.
PCR262/PCR940/PCR941

Download
Catalog     Picture


Introduction

PCR Series RFID Proximity Readers with MSR ABA  TK2 emulation can read RFID cards and sent out the data with MSR ABA TK2 format, it can simply replace the Mag-stripe reader in your existing systems and no circuit change nor firmware change is needs.

With PCR series RFID Readers, you may upgrade your Mag-Stripe reader systems to proximity RFID reader system without any change on circuit of firmware.

PCR Series are equipped with two I/O interfaces, MSR IN and PCR OUT.This feature make it possible that you may install the Proximity reader to your system in addition to the existing Mag-stripe reader if you would like to use both PCR and MSR on your system.



Features
* MSR ABA TK2 emulation interface ,totally compatible with TTL output ABA TK2 standard Mag-stripe reader
* Can simply replace Mag-stripe reader
* Equipped with two I/O interface, MSR IN and PCR OUT. It is possible you use both Proximity reader and Magnetic Stripe   reader on your system
* No repeatedly reading trouble
* LED indicator to show operation status
* Audible beeper to show reading status
* Easily integrated with most access control systems, time & attendance
* PCR262 with small footprint like MSR module can be installed inside of your systems or outside
* Can be installed on metal surfaces , walls and doors



Specifications
*Power requirement: DC 5V
*Operation temperature :0~55 Deg.C
*Storage temperature:-25~65 Deg.C
*Humidity:5~19% relative
*Inerface:
TTL , MSR ABA TK2 emulation
*Read range:
PCR262- about 5~10 cm
PCR941-abotu 5~12cm
PCR940-about 5~20cm
*Frequency:
PCR262-125 KHz , ASK
PCR941-125 KHz , ASK
PCR940-134.2 KHz , FSK
*Format:
PCR262- 64 bits  , Manchester coding, EM format ,EM technology
PCR941-64 bit ,Manchester coding, EM format ,EM technology
PCR940-TOROS format, TIRIS technology
*Data capacity:
PCR262- 40 bits , 10 digits Hex
PCR941-40 bits , 10 digits Hex
PCR940-64 bits , 16 digits Hex
*Transponders: Read only
CFR01- ISO card EM format for PCR262/PCR941
CFR03- 2mm thick EM format for PCR262/PCR941
CFR02-1.6mm thick TIRIS format for PCR940
*Dimension:
PCR262- H102*W42*D27.5mm
PCR941- H85*W80*D25mm
*Metal surface mounting is passable
Note: The Specification is subject to change without notice.



Application
Access Control
Time & Attendance
Personal Identification Systems
Parking Systems
Security Systems



Available versions
PCR262 - 125kHz , EM technology , small footprint
PCR941 - 125kHz ,EM technology
PCR940 - 134.2 KHz , TIRIS technology



Remark



Application Example
