Product Name

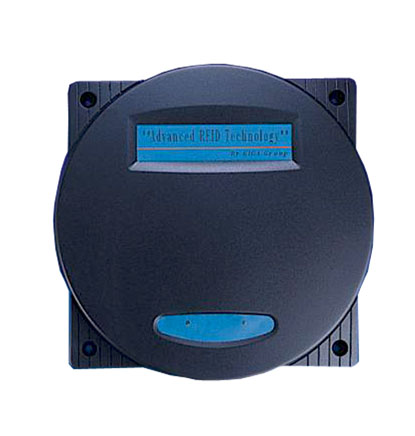

Powerful Extended Range Proximity Reader

Model No.
GP60A

Download
Catalog     Picture


Introduction

GP60A is a powerful extended range proximity RFID reader featuring small dimensions and a read range of up to 60 cm . This RFID reader will run from any voltage from 5 to 13.5 Vdc and making it particularly suited to access control ,car parking and through-wall reading applications .The same basic unit can be configured to output most of the common interface formats ,including Wiegand , Mag-stripe and RS-232 serial ASCII output, RS485, making it easy to upgrade the existing installations.



Features
*   With Auto-tuning function.
*   With a relay
*   The reading distance can be up to 60 cm

*   Small outline
*   Long read rang
*   Wide voltage range
*   Externally programmable interface
*   Potted for environmental protection
*   Weather resistant



Specifications
Power Requirements:5~13.5 volt regulated DC,350 mA . A linear 12 volt regulator is best used ,but the unit will work with a wide variety of supplied
Interface:
RS-232:Serial ASCII , 9600 ,N,8,1
RS485
Wiegand:26 bits
Magstripe: ISO ,ABA TK2 emulation
Read Rang: up to 60 cm at 13.5 Vdc with ISO card in ideal conditions
Frequency: 125KHz ,ASK
Format: 64 bits ,Manchester coding
Transponder: Read only
Chip type : EM H4001/4002 compatible
ID code : 10 digits in Hex
125 KHz ,ASK
64 bits ,Manchester coding
Rate timing : MOD 64 (64 clocks per bit)
Audio/ Visual Indication : Internal LED and Buzzer
External buzzer control also available
Dimensions: W210*H210*D35 mm
Temperature Range :-10 to 60 Deg. C

Note: The Specification is subject to change without notice.



Application
Access Controls
Car parking systems
Through-wall Reading Applications
Any Long Range Reading  Applications



Available versions
GP60A-00 : 4 in 1 interface

AVAILABLE TRANSPONDERS:
CFR01 -- 86*55*0.8 MM ISO card
CFR03 -- 86*55*2 MM Badge card
TAG52 -- Disc with diameter 52 mm ,8 mm thickness
TAG40 -- Disc with diameter 40 mm ,5 mm thickness
TAG35 -- Disc with diameter 35 mm , 4.5 mm thickness
TAG25K -- key Tag , 31*41*5 mm



Remark

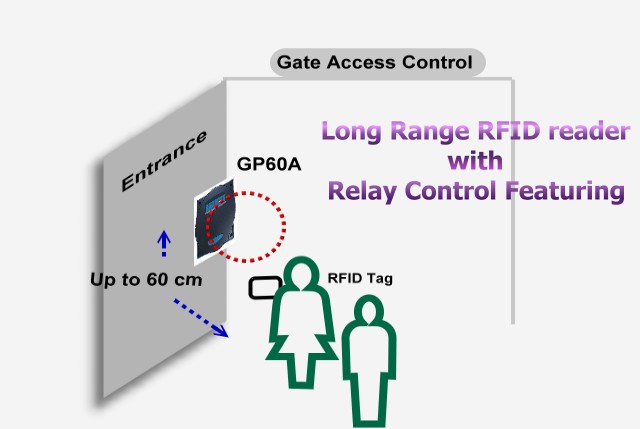

Application Example
