Product Name

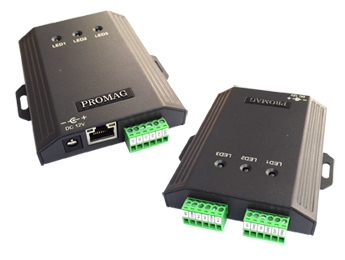

Smart Ethernet Access Controller

Model No.
AC101

Download
Catalog     Picture


Introduction

AC101 is a smart and easy-to-use Ethernet access controller that can be fitted to two doors. It is able to connect any kind of Wiegand reader in the market, such as magnetic stripe reader, RFID reader or fingerprint reader. There is Utility software for user to change settings of the device through over the network. Via TCP/IP protocol, you also can set some configuration, the filter list of person, and time-zone management. Also you can get door access record by Ethernet too. With the network-enabled access, it gives the advantages of central control, and viewing the event log reports easily.



Features
- Supports 2 Wiegand readers and 2 doors access management.
- Features 2 input sensors for the detection of incorrectly closed or uncloked door
- 3 LED design for signal feedback
- Up to 30,000 ID numbers of people management (white list)
- Up to 60,000 records memory storage
- Time zone management for every person.
- All settings can be configured via network



Specifications
Power Requirements:  5.5mm/2.1mm, DC 9v to 24v, 120mA@12v
Indicator: LED * 3
Time base: Real Time Clock
Backup battery:Provide power for RTC when power failure
Buzzer: 1
Relay: 2 Relay : Max 2A, 12V
Input sensor: 2 Sensor : low voltage active
Exit button: 1
Interface: Ethernet
External Reader:2 readers with Wiegand interface
Number of the Filter List    30,000
Number of record         60,000
Operation temperature         0~55 degree C
Relatvie humidity          5~95% RH
Dimensions                 L100 xH 96.8 xD24.35mm

Note: The Specification is subject to change without notice.



Application



Available versions



Remark

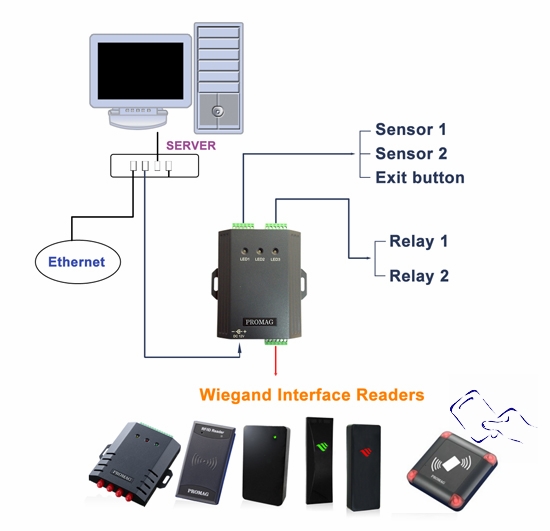

Application Example
