Introduction

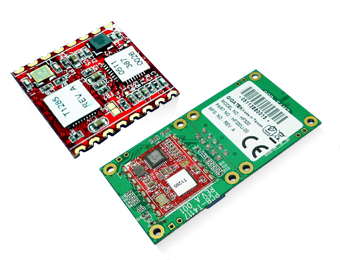

The Promag HF20 and HF320 are designed to be a ready line to be integrated or embedded in Access Control, Security Terminals, Smart Mobile Devices and Auto ID Data Collection. These two high performance HF RFID Read/Write Modules HF20 and HF320 feature multiple frequency ISO14443A, ISO14443B and ISO15693 in 13.56MHz frequency, offering the read range from 20 mm to 80 mm. They allow the existing installation or applications upgrade seamlessly and keep most of their hardware architecture with more secure 13.56Mhz RFID technology.
Features
1. Support multi frequencies
2. Ultra compact size
3. Featuring low profile, lower power consumption
4. HF20 available with SMT/DIP mounting type
5. HF320 available with 3 types of mounting
type 0, type 1 or type 2 for options
Go to HF mounting types
Specifications
HF20
Interface: Series TTL
Baudrate: 19200, N, 8 ,1
Power requirement: 3.3V regulated
Protocol: ISO14443A, ISO14443B, ISO15693
Frequency: 13.56MHz
Read range: 50 mm
Dimension: SMT type 20.5L x 18.2 W x 2.25H mm
DIP type 20.5L x 20.7 W x 6.8H mm
Operating temperature: 0 degree C - 60 degree C
Humidity : 10 - 90% relative
HF320
Interface: RS232, TTL, USB
Baudrate: 19200N, 8, 1
Protocol: ISO14443A, ISO14443B, ISO15693
Frequency: 13.56MHz
Read range: Mifare 1 - 3 cm
ISO15693 2 - 4 cm
Operating temperature: 0 degree C - 60 degree C
Humidity: 10 - 90 % relative
Dimemsion: 60L x 30W x 7.8 H mm
Note: The Specification is subject to change without notice.
Application
Data Collection
Handheld Devices
Portable Applications
Smart Mobile Point of Sales
Available versions
HF20-00 Read/Write Module
HF320L Module w/Antenna board, Serial TTL
HF320R Module w/Antenna board, RS232
HF320U Module w/Antenna board, USB
Remark
Application Example
|
