Product Name

Model No.

Catalog     Picture

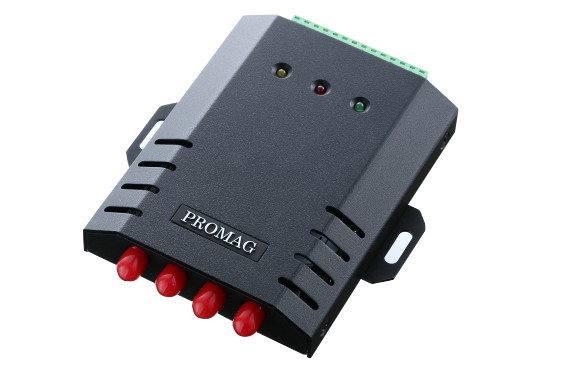

UHF860 is a slickly designed ultra high frequency RFID reader with a reading range of 5 meters.  It has ports to connect 4 antennas and it built in compliance with ISO18000-6C EPC Class 1 Gen2 standards.  UHF860 has widely varied applications such as Asset management, Academic management,Transportation management, etc. and helps you with convenient, practical and reliable management solutions.


* 4 antenna ports
* Up to 5 meters reading range
* Lightweight
* Industrial I/O
* Multi-regional flexibility
* 3 LED indicators
* Configurable by proprietary software configuration
* Easy to install


Operational Standard
Connectivity standard: ISO 18000-6C,EPC Class 1 Gen2
working frequency: 840-960 MHz
Transmit Power: 27dBm (0.5W) maximum

Sys Spec.
Interface format:
- RS232: default value at 115200 bps (8,N,1)
  available from 4800 - 115200 bps
- RS485: default value at 115200 bps (8,N,1)
  available from 4800 - 115200 bps
- Wiegand
Power input: 7.5VDC- 12VDC, 1A
Reading range: Up to 5 meters(tags and antenna dependent)
Dimensions: length 114 mm, width 97mm, height 21mm (terminal included)

Physical characteristics
Weight: 170 grams (terminal included)
Connectors: SMA for Antenna, 14 pin terminal 3.5mm
UHF860 with SMA ( female body with female inner pin)
UHF860US with SMA (female body with male inner pin)

- Operating temp: -10 degree C- 60 degree C
- Storage temp  : -20 degree C- 70 degree C
- Operating: 10% - 90% non-condensing
- Sotrage  : Up to 90% non-consdensing


Note: The Specification is subject to change without notice.


Supply chain management
Logistic inventory management
Cargo tracking management
Warehouse management
Shop floor management
Class management


Available versions
UHF860 ( Europe type)
UHF860US ( US type)

The UHF Reader/Writer PCR800 is available to work with UHF860 to read/write the tags.

****** Now SDK is available on request *******


More applications at


Application Example
