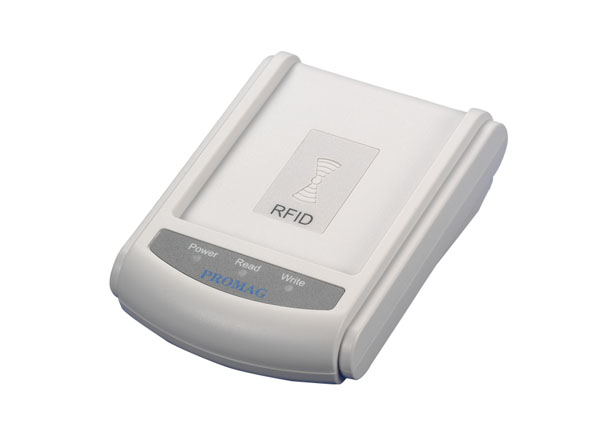

Product Name
Mifare DESFire Reader/Writer

Model No.
PCR320

Download
Catalog     Picture


Introduction

The PCR320 is a high performance Mifare DESFire  card reader and writer.  Multi-application cards can be applied to use with this device.  By using PCR320 with the bundled software, customers are able to implement their own applications and define security keys at their end.



Features
Fast data transfer
High data integrity
True anti-collision



Specifications
RF frequency: 13.56MHz
RF distance: up to 5 cm ( MFA01A is the card number supplied by Promag)
DC power: 5V/150mA
Interface: USB
Card types: ISO14443A, Mifare class, Mifare PRO, MIfare DESFire
Dimension: W8.5x L12 X D4.2 cm
Housing: ABS
Weight: 125 grams

Operating: -10 - + 60 degree C
Temperature

Operating: 10- 90%
relative
humidity





Note: The Specification is subject to change without notice.



Application
Guest registeration system
Authorization identification
Identity authentication
Pre-payment, Ticketing
Prepaid parking/Meal coupon
Multi-applications: tracking, retail, customer loyalty, Leisure, gambling



Available versions
Available for Mifare DESFire and Mifare DESFire EV1



Remark



Application Example
