Product Name
Basic Programmable Ethernet Data Terminal

Model No.
FAT810

Download
Catalog     Picture


Introduction

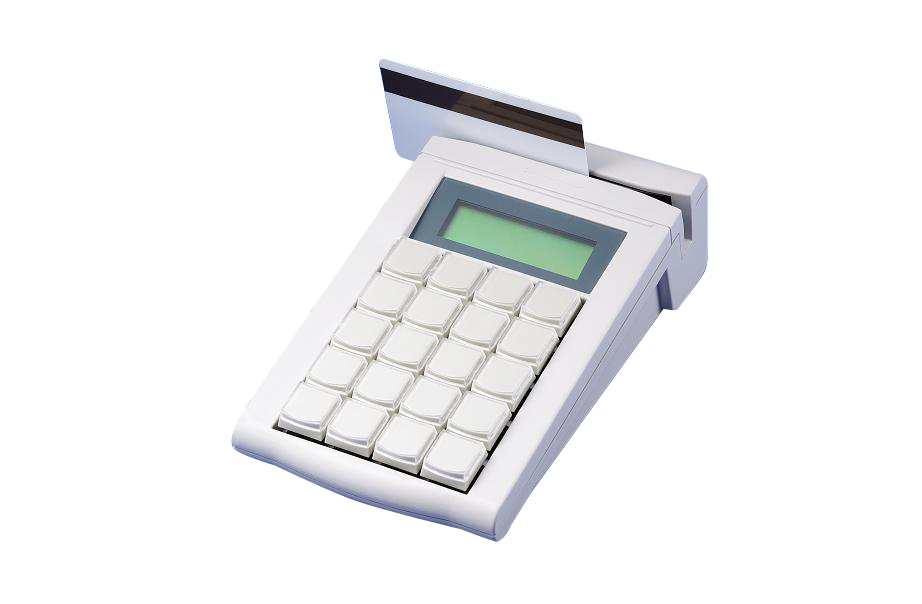

FAT810 Ethernet Data Terminal is a compact data terminal that communicates with the host over the TCP/IP network.  The operator interface includes a 16 X 2 alphanumeric LCD display, a 20-Key programmable keyboard and a card reader input (a magnetic card reader or barcode card reader or RFID reader).When the FAT810 is connected to a 10/100 BaseT Ethernet network, it functions like a TCP/IP terminal.  The host server can send commands and display messages to FAT810 via network. The user is able to enter data to the keypad or the card reader for transmitting data to the server.



Features
* BASIC programmable embedded technology
* Featuring serial printer port
* 4 I/O available for external device connection
* Wall mount or desktop installation availablel
* Supports Multiple languages
* Elegant compact shape for easy installation
* LCD display to show operation message and keypad key-in
* Buffer mode /non-buffer mode
* 2 display ways on LCD: Digit / Asterisk for keypad key-in



Specifications
FAT810M  Magnetic Stripe, TK2
FAT810B  Barcode reader. LED type
FAT810F  Barcode reader, IR type
FAT810R  RFID reader by 125KHz
FAT810FL RFID reader by 13.56MHz FeliCa type
FAT810W RFID Reader/Writer 13.56Mhz Mifare type
Note: The Specification is subject to change without notice.



Application
Factory automation terminal
Shop floor control terminal
Real time production monitoring system
Food court POS solution



Available versions



Remark




Application Example
