Product Name

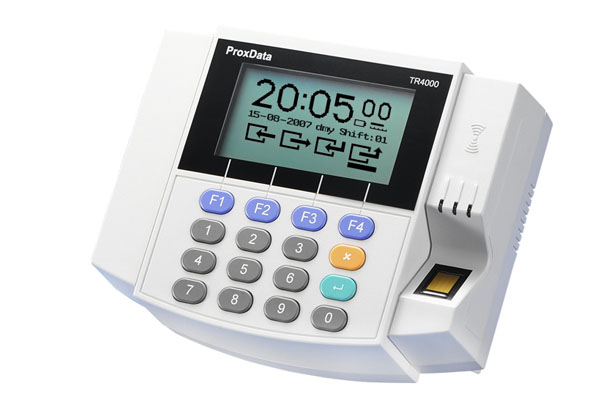

Fingerprint and Contactless Smart Card Time Recorder

Model No.
TR4050

Download
Catalog     Picture


Introduction

The TR4050 Time and Attendance Terminal is the latest addition to ProxData's family of Time Recorders.   It is an extremely easy of use Fingerprint Time recorder. The User only needs to read his/her fingerprint to the terminal and a new database record is created every time when a fingerprint is read.   The new TR4050 also adds online communications capability and numerous new features.Users just put their fingers on the sensor to be read for completion of attendance. The read data covers machine id, code of fingerprint, time shift, date, time.  All data are kept in device's memory.

Users just put their fingers on the sensor to be read for completion of attendance. The read data covers machine id, code of fingerprint, time shift, date, time.  All data are kept in device's memory.

Easy access of fingerprint enrollment:Through RFID manager enrollment card. TR4050 can complete the registration of employees' fingerprints.

Note: TR4050 simple use can be through MANAGER ENROLL CARD or MANAGER DELETE CARD to register or delete employees' fingerprints

Fast fingerprint identification
TR4050 is able to recognize each fingerprint within 1 second under  matching mode: 1:N .  Most of terminals in market are hard to achieve though they are able to store thousand of fingerprints.

Back up with RFID Cards
Those who 3%-5% people fingerprints cannot be recognized will require the other solution for time attendance.  TR4050  is also built in with RFID card technology to solve this and available with TCP/IP interface serving as an internet-enabled terminal.

Time Recorder Utility is a bundle software to download data featuring easy to set up and available in multiple-language versions to set up time, ring bell schedule, TR4050 terminal ID, attendance records in auto scheduling download.







Features
More add on features:
USB disk port for loading data to USB disk
Featuring online and offline enrollment/functions
Display messaging available for time or fingerprint code or error message
512K bytes memory size for 12000 records storage
1900 fingerprints storage
Supports TCP/IP communication interfaces

The features of TR4050 USB Disk

1. Full Speed USB-Host port, compatible with USB V2.0
2. Support USB-Disk File System: FAT12, FAT16, FAT32
3. Support USB-Disk volume up to 100GB
4. Support multi-directory
5. Use "date" as file name when saving file (.txt file)
6. Set login-password-file to prevent downloading data inadvertently





Specifications
New added function is released

Online fingerprint enrollment is avaialble by TR4050-10 version
Note: The Specification is subject to change without notice.



Application
Welcome to view our new Advance Fingerprint Time Recorder TR4080 on YouTube



Available versions
TR4050-00  Offline fingerprint enrollment version

TR4050-10  Online fingerprint enrollment version

TCP/IP, 13.56MHZ Mifare ISO14443A



Remark



Application Example
