 Home > Products > RFID Readers\RFID Products > Smart Label Reader/Writer (ISO15693)

Smart Label Reader/Writer (ISO15693) About US | Sales Inquiry | RMA Service |




Product Name
Advanced Smart Label Reader/Writer

Model No.
AMP600

Download
Catalog     Picture


Introduction

AMP600 is an advanced smart labelreader/writer based on Radio Frequency Identification (RFID) Technology.  It is a versatile and easy to use ISO15693 RFID 13.56Mhz reader/writer good for those who need the solution of multi-tag to be read in one time in a long queue.  This AMP600 is the suitable solution to be integrated with the so -called Smart Check out System applying RFID technology.



Features
* Compact sized for easy installation.
* Anti-collision
* Featuring of data reading and writing
* 3-LED design for signal indication
* Heavy-duty proof metal housing
* Reading distance up to 30 cm with an ideal design antenna conditions




Specifications
AMP600 Physical Reader/Writer
Operating frequency 13.56Mhz
Supported Tags ISO15693 compliant transponders
Interface RS232 and RS485, 19200, n, 8, 1
Power requirements 12VDC, 300mA
RF Modulation 100%FM
RF Protocol ISO/IEC15693
Operating time <24ms per one label

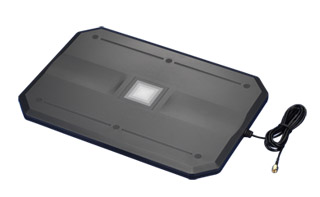

Antenna ANT-1031 with CRD-T0004/3 pcs
Operating frequency 13.56Mhz
Reading distance Up to 30 cm
Antenna connection SMA-plug ( 50 ohm)
Antenna cable RG174// 2M
Number of tags at the same time 16
Protection class IP40
Dimension (mm) L345 x W240 x H20











Note: The Specification is subject to change without notice.



Application
Valuable items/assets tracking
Library gate access controll
Retailing shops smart check-out system



Available versions

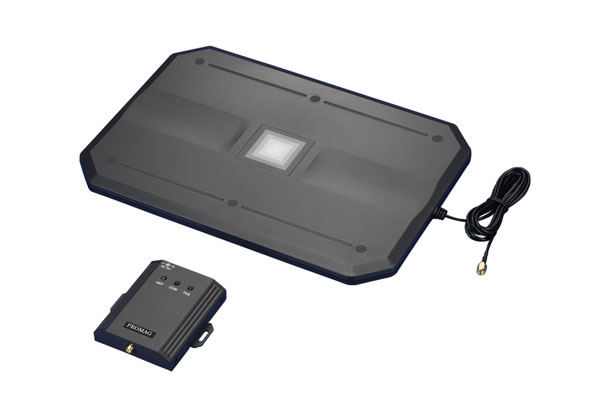

AMP600 + ANT-1031 with CRD-T0004/ 3 pcs



Remark

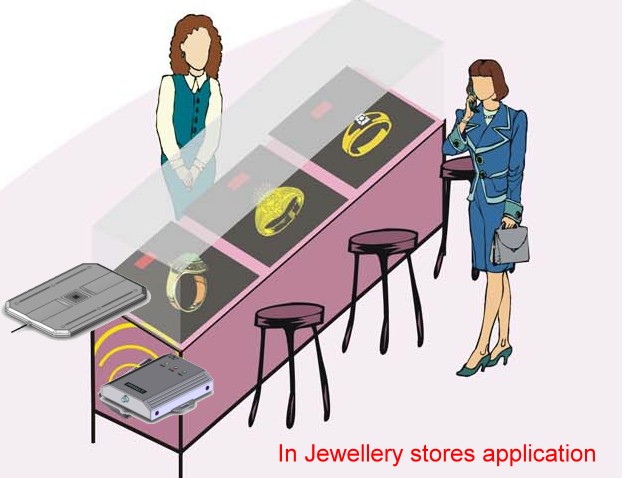

Application Example
