Product Name
Ethernet Data Terminal

Model No.
FAT800A

Download
Catalog     Picture


Introduction

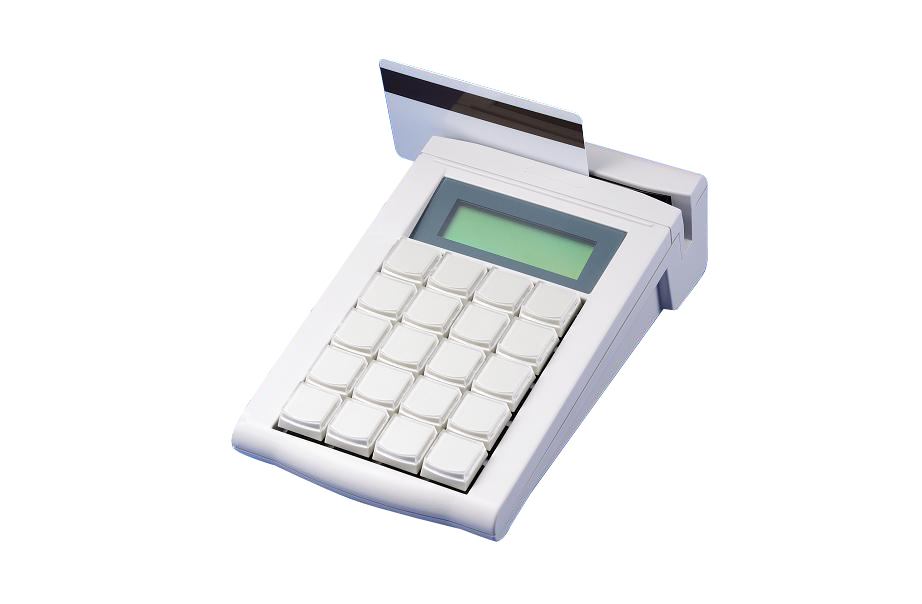

FAT800A Ethernet Data Terminal is a compact data terminal that communicates with host software application program over the TCP/IP network.  The operator interface includes a 16 X 2 alphanumeric LCD display, a 20-Key programmable keyboard and a card reader input (a magnetic card reader or barcode card reader or RFID reader). When the FAT800A is connected to a 10 BaseT Ethernet network, it functions like a TCP/IP terminal.  The host software can send commands and displayable message to FAT800A via network, also user input from the keypad or the card reader is sent to the host software.



Features
* Elegant shape
* Easy to set up on a platform
* 20keys programmable
* LCD display to show operation message and keypad key-in
* Wall mount or desktop
* Transmission: 10 BaseT Ethernet, TCP/IP
* Buffer mode / non-buffer model
* 2 display ways on LCD: Digit / Asterisk for keypad key-in
* Optional Magnetic card Reader or Barcode Reader or RFID reader for card input.
* Featuring serial printer port.
* 4 I/O available for external devices connection



Specifications
LCD Display: 16*2 character LCD display to show operation message and Key-in
Reading speed(Card reader): 3-50 IPS
Barcode reading(Barcode version): Code 39, I25, EAN 13, EAN 8, UPCE, UPCA, CODE 128, Codabar, Code 93, Code 11
Interface: 10BaseT Ethernet (TCP/IP) RJ45
Data transmission: Buffer mode / non-buffer mode, ASCII
2 display ways on LCD: Digit / Asterisk for keypad key-in
Number of keypad: 20 keys programmable
Safety Certificate: FCC / CE
Power consumption: 12V DC 100mA
Dimension: W105 X L185 X H55 (mm)
Weight: Approx. 425 grams
Operation temperature: 5 ~ 55 degree C
Humidity: 10 ~ 90% relative



Note: The Specification is subject to change without notice.



Application
1. Factory automation terminal
2. Shop floor control terminal
3. Logistics
4. Real time production monitoring system
5. Time and attendance



Available versions
Order Information:
FAT800AM - Magnetic Stripe, TK2
FAT800AB - Barcode reader. LED type
FAT800AF - Barcode reader, IR type
FAT800AR - RFID reader



Remark



Application Example
